Eberline 8085 Single Board Computer

Eberline 8085 Single Board Computer main image
Eberline 8085 Single Board Computer-image

  • Board

    • 2-layer, plated through hole, solder mask, no silkscreen

    • 7″w x 6.5″ high

    • Edge connector 2×50 (=100) 0.1″ pitch

  • 8085

  • 4x 2732A EPROMS

  • 3x Intel 8155 RAM + I/O

  • Marking

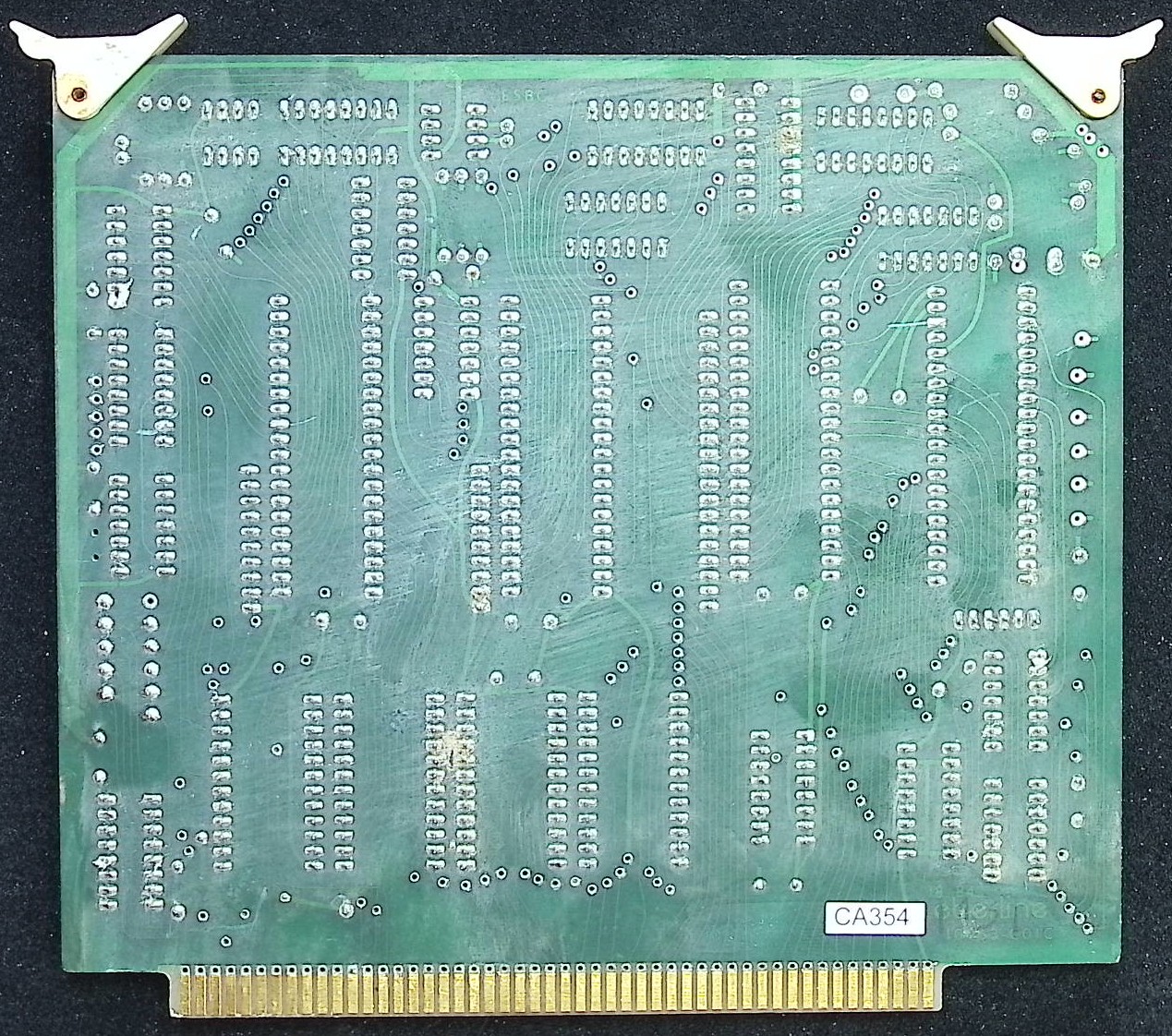

    • Back copper:

      • 10263 COIC

      • eberline

      • 18 84

Category: Mystery Boards
Sub-Categories:
Tag: 8085
ID: 354
Schematic:
Manual:
Location:
Literature:
